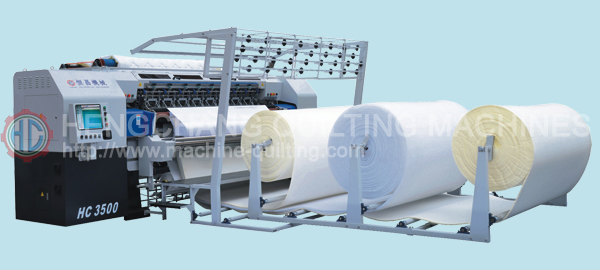

HC3500 High speed computerized multi-function Chain Stitch quilting machine


HC3500 quilting machine

SPECIAL FUNCTION:

Independent sewing heads,allows quilt with simple patterns,T&J patterns and single head quilting patterns.(Patented product).
State of the art tracking,superior tracking system allows effortless movement of foam to be fed into the quilter(Patented product).
Adjustable presser foot lifting mechanism enables you to quilt a broad range of material thickness and patterns.
A high powered fast speed controlled servo motor for thick quilting with accuracy.
New main shaft control for easy timing adjustment.
Using high quality sealed bearings.
Newly updated software allowing quick design changes of operation.
Thread break detector.
Using air cylinder for thread cutting tail length.
Emergency safety devices.
Diagnostic detection.


Technical Specification:

Size (length*width*height) 5500X1500X2500(mm)
Weight 5000kg
Quilt width 2450mm
Rotation speed 600-1000RPM
Production speed 80-230m/h
Needle type 140/22, 160/23,180/24
Needle arrangement (50.8,76.2,127) (76.2,76.2,152.4)
Max. horizontal movement 480mm
Needle space 25.4mm
Power supply 380V/220V 50Hz/60Hz
Stitch size 2-7 mm
Power 10 KW
Quilting thickness ≤80mm

Products:
quilt pattern pattern in pattern quilt machines pattern quilt pattern quilt pattern
quilt pattern quilt pattern quilt pattern quilting machine pattern quilting machine pattern

Feature Icon:
quilting machines
19-inch Liquid Crystal Display Powerful spindel servo motor Independent disconnection Dynamo encoder
quilt pattern Quilt Pattern quilt pattern quilt pattern

Applications:

Mattress Comforter Clothing Handbag Glove Sleeping bag All bed equipment of pattern.
