Multi-function Chain Stitch Quilting Machine

HC3500 quilting machine HC3500 quilting machine

HC3500 new high-speed computer shuttleless quilting machine

Introduction:
New design of computer software system, any combination of patterns, easy to operate, high quilting precision

GET A QUOTE



Functional Advantages



Quilting machine, computer quilting machine, HC3500 quilting machine Features:
1, multi-head design, with multi-needle quilting function d both single needle quilting effect (patented product);
2, sponge servo system, feed leveling, easy to operate, convenient and practical (patented product);
3, different thickness of the quilted fabric, the overall pressure plate can be easy to operate;
4, the spindle and X, Y axis, the use of high-power servo motor to ensure high-speed machines, accurate operation;
5, Spindle hand coding rotary system to facilitate machine operation and adjustment;
6, the latest design enhanced arms exercise mechanism, durable, no fuel, fast speed, small vibration;
7, the new design of computer software system, any combination of patterns, easy to operate, high precision quilting;
8, the first infrared break device, no contact, reliable performance;
9, the first domestic quilted independent pattern, the use of pneumatic thread trimming technology, thread cutting fast;
10, perfect safety protection device
11, running status detection and prompts, the machine running at a glance.



Function Parameter




HC3500 quilting machine



Size (length*width*height) 5500X1500X2500(mm)
Weight 5000kg
Quilt width 2450mm
Rotation speed 600-1200RPM
Production speed 80-230m/h
Needle type 120/21, 140/22, 160/23,180/24
Needle arrangement (50.8,76.2,127) (76.2,76.2,152.4)
Max. horizontal movement 480mm
Needle space 25.4mm
Power supply 380V/220V 50Hz/60Hz
Stitch size 2-7 mm
Power 10 KW
Quilting thickness ≤80mm





Grouped Equipment

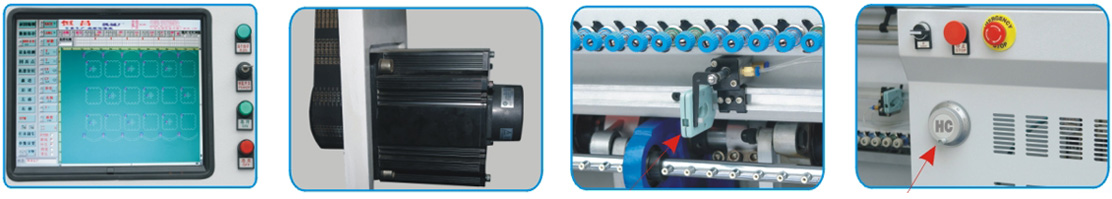

HC3500 quilting machine details
 19-inch large LCD                        High-power spindle servo motor              Independent disconnector                 Hand encoder





Application Range





Quilted senior mattress fabrics, bedding, home decoration a variety of tricks.

HC3500 quilting machine samples
